Name: Ring And Pinion Gears , Crown Wheel & Pinion Gear For Transmission Box
Brand: Zhuzhou Gears Auto Parts Co., Ltd.
Availability: InStock

Home Products Helical Bevel Gear

Ring And Pinion Gears , Crown Wheel & Pinion Gear For Transmission Box

Product Details:

Place of Origin:	ZhuZhou,HuNan,China(mainland)
Brand Name:	JICHI
Certification:	DIN, ISO/GB, AGMA, JIS

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Negotiable
Packaging Details:	Anti-rust paper, carton, wooden case
Delivery Time:	10-50 days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union

Contact Now

Detailed Product Description

Type:	Crown Wheel And Pinion	Tooth Profile:	Helical Gear
Direction:	Right Hand	Material:	20CrMnTiH3, 20CrMnTiH
Processing:	Forging	Pressure Angle:	22.5
Highlight:	diff crown wheel , ring and pinion gears

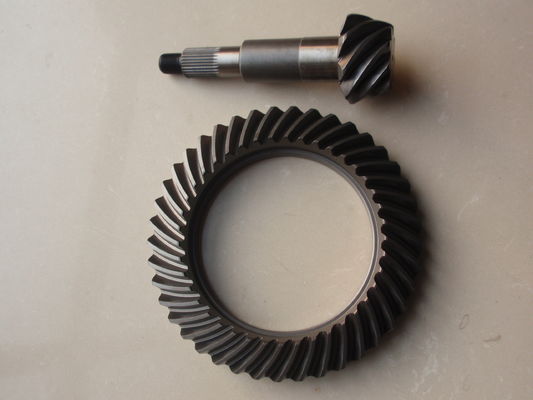

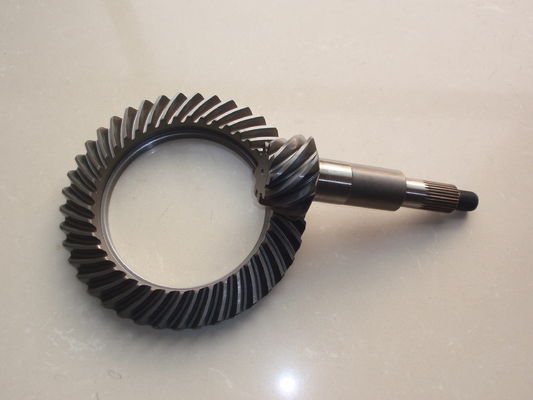

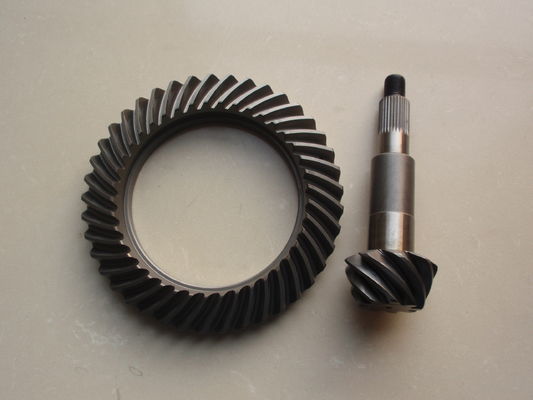

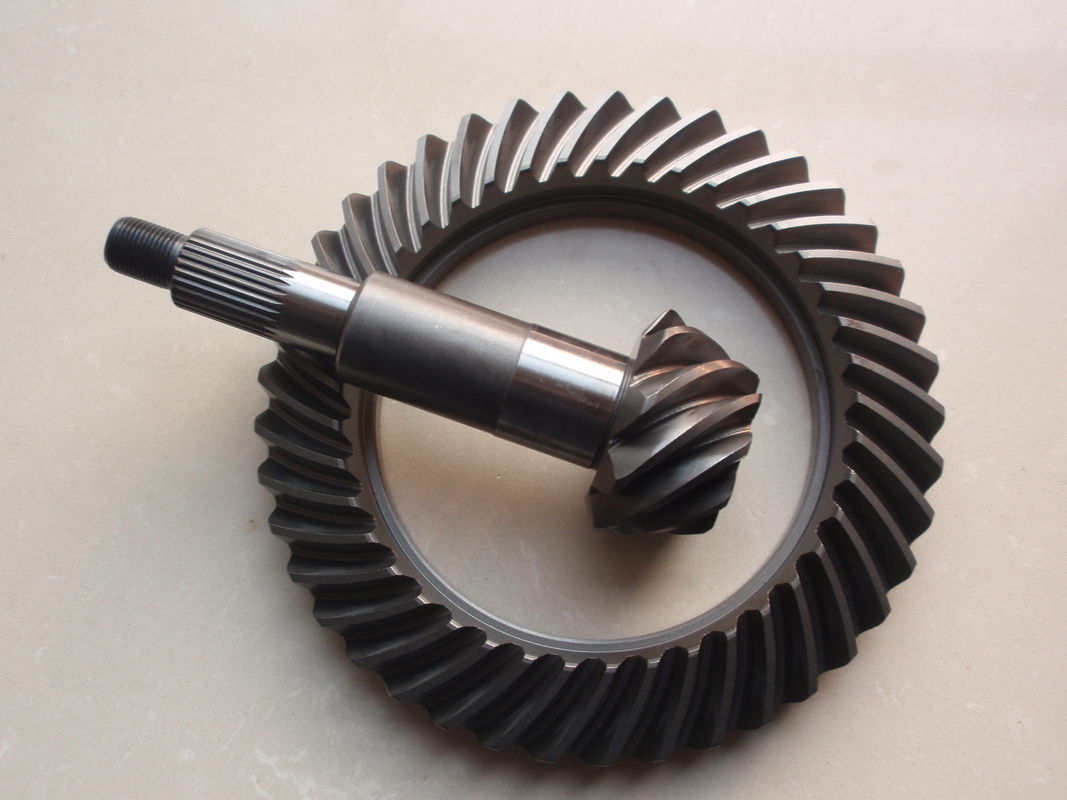

Sprial Bevel Crown Wheel & Pinion Gear

Compose	Differential case,Differential flange part,Crown and pinion,Small differential,Bearings
Car make	NPR,TFR,D-MAX
Speed ratio	739,741,743.637 639,843,839,941,10*41
Pinion length	225mm(For NPR)
Ring gear inner diameter	200mm(For NPR)
Ring gear outer diameter	292mm(For NPR)
Material(housing)	Nodular cast iron
Material(gears)	20CrMnTiH3
Axle spline teeth	19T/20T/23T

The excellent raw materials are used in the production of spare parts. The crown wheel& pinipn are produced by Gleason machines, cover all main step from CNC lathe turning, milling, drilling, Gleason Spiral Bevel gear Generator System. have perfect matching of parts for low noise. We are one of best spiral bevel gears manufacturer in this field of China.

D30373	11/41	CJ5/7/8 30 FRONT STD.3.73 72-86
D30373R	11/41	YJ FRONT 30 REVERSE 3.73
D30373TJ	11/41	TJ (97-06) FRONT 30 3.73 (SHORT STYLE)
D30410	10/41	CJ5/7 30 FRONT STD.4.10
D30410R	10/41	YJ(87-95) FRONT 30 REVERSE 3.73 XJ(84-91)
D30410TJ	10/41	TJ (97-06) FRONT 30 4.10 (SHORT STYLE)
D30456	9/41	CJ5/7/8 30 FRONT STD.4.56 72/86
D30456R	9/41	YJ(87/95) FRONT 30 REVERSE 4.56 XJ(84-91)
D30456TJ	9/41	TJ(97-06( FONT 304.56 (SHORT STYLE) XJ(92-01)
D30488	8/39	CJ5/7 30 FRONT STD.4.88 72-86
D30488R	8/39	YJ(87-95) FRONT 30 REVERSE 4.88 XJ(84-91)
D30488TJ	8/39	TJ FRONT 30 4.88 (SHORT STYLE)
D30272(47715)	18/49
D35373	11/41	YJ/TJ 35 REAR 3.73
D35411	10/41	YJ87-95 /TJ97-06/XJ93-07 35 REAR 4.10
D35456	9/41	YJ/TJ 35 REAR 4.56
D35488	8/39	YJ/TJ 35 REAR 4.88
D44373	11/41	TJ REAR 44 3.73
D44409	11/45	TJ REAR 44 4.10 22745
D44456R	9/41	44 4.56 REVERSE
D44455	11/50	TJ REAR 44 4.56 22105
D44455X	11/50
D44488R	8/39	44 4.88 REVERSE
D44489	9/44	TJ REAR 44 4.88 23053
D44489X	9/44
D44488X	8/39	RUBICON FROUT/REAR 44 4.88
D44513R	8/41	44 5.13 REVERSE
D44513	8/41	TJ REAR 44 5.13
D44513X	8/41	RUBICON FROUT/REAR 44 5.13
D50456	41/9
D50488	39/8
D50513	41/8
D44-4-373	41/11	80229
D44-4-342	41/12	80364
D44-4-353	46/13	75945
D44-4-307	43/14
D44-4-346	38/11	84707
D44463	37*8	74960
D44410	41*10	80320
D44373	41*11	22736X
D44456	41*9	80213
D44323	42*13	28744
D44331	43*13	23592X
D44307	43*14	22106X
D44354	46*13	22856X
D44427	47*11	23064 JEEP WILLYS 11*47 8125051 ANO 1985(CJ6)
D44427X	47*11	CHRYSLER
D44538	43*8
D44-3-342	41*12	660150
D60411	37*9	74905 Toyota 3F,D60-411,9X37
D60410	41*10	24807(FORD250)
D60373	41*11	25538
D60354	46*13	24813
D60456	41*9	FORD F250
D60456X	41*9
D60513	41*8
D60513R	41*8
D60586	41*7
D60538	43*8	Isuzu NHR,D60-586 7*41
D60538R	43*8
D60488	39*8
D60488R	39*8
D70488	39*8	72148
D70410	41*10	72153
D70373	41*11	72159
D70513	41*8	72150 C30/P30 F350 41*8 5.3
D70456	41*9	72152 FORD F350 75-80
D70354X	46*13	72168
D70-1-410	41*10	72154 FORD F350 BAJA 75/80 41*10 4.10
D70586	41*7	72156 D300/P300 41*7 5.86
D75-410	41*10	BA402071-X Ford Cargo
D75-462	37*8	BA402104-X
D80513	41*8	73168
D80410	41*10	73200
D80410X	41*40
D80430	43*10	76128
D80488	39*8	76138
D80463	37*8	73167
D80373	41*11	76256
D80354	46*13	73353
GM10-373	41/11
GM10-410	41/10
GM10-342	41/12
GM10-308	40/13
GM10-456	41/9
F975410	41/10
F975488	39/8
F975456	41/9
F88488	39/8
F88456	41/9
F88410	41/10
F88373	41/11
F88355	39/11
FORD4.44	40/9F
FORD4.44	40/9R
FORD4.44	40/9R	MAZDA 0680-504D
FORD3.45	38/11	0578-019
FORD	37/12	0575-012
RP-1-456	41/9	SAHARA
RP-1-488	39/8	SAHARA
RP-1-513	41/8	SAHARA
RP-2-456	41/9	RUBICON
RP-2-488	39/8	RUBICON
RP-2-513	41/8	RUBICON
RP-3-456	41/9	SAHARA
RP-3-488	39/8	SAHARA
RP-3-513	41/8	SAHARA
RP-6-456	41/9	NISSAN
RP-6-410	41/10	NISSAN
RP-6-411	37/9	NISSAN
JA	41/13
JA	39/11
JEEP2.5-410	41/10F
JEEP2.5-410	41/10R
JEEP2.5-456	41/9F
JEEP2.5-456	41/9R
